Utilizing Minus K’s unique breakthrough technology, the Compact Tabletop (CT-2) offers the finest performance in a 2.7-inch-tall isolation platform. Better horizontal performance and more payload ranges for larger instruments are features of this machine, which is an improvement over Minus K’s CT-1.
This fully passive mechanical isolator performs 10–100 times better than a full-size air table. It accomplishes this without using energy or air.
This vibration isolation platform is simple to operate and features the trademark 0.5 Hz vertical natural frequency and ~1.5 Hz horizontal natural frequency. There are only two adjustments. The CT-2 is suitable for any type of benchtop microscope.
When providing this performance, this is the thinnest, most portable, and easiest-to-use isolator available.
The CT-2’s vertical 1/2 Hz performance is seen by the vertical curve below. Compared to standard air tables, the CT-2 provides natural frequencies as low as 1.5 Hz horizontally.
Download the brochure for more information

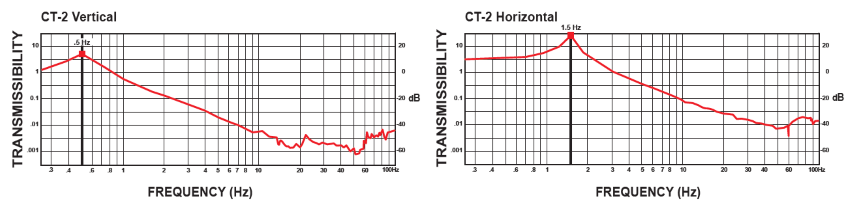

Typical performance curves:
The vertical curve above demonstrates the vertical 1/2 Hz performance of the CT-2. Horizontally, the CT-2 offers natural frequencies as low as 1.5 Hz, much better than typical air tables. Image Credit: Minus K Technology, Inc.
Source: Minus K Technology, Inc.
| . |
| Weight: Approximately 30 lbs (16 kg), *43 lbs (19.6 kg), **48 lbs (21.9 kg) |
| Dimension: 18” W x 20” D x 2.7” H (457 mm W x 508 mm D x 68.6 mm H) |
| Approximate payload weight range |
| Model |
Payload Range |
| 30CT-2 |
18-31 lb. (8.2-14 kg.) |
| 60CT-2 |
42-70 lb. (19-31.7 kg.) |
| 100CT-2* |
68-104 lb. (31-47 kg.) |
| 150CT-2* |
112-158 lb. (51-71.5 kg.) |
| 200CT-2* |
155-210 lb. (70.5-95.2 kg.) |
| 250CT-2** |
205-252 lb. (93-114.3 kg.) |
| Performance |
- Horizontal frequencies are weight-dependent.
- Horizontal frequency of ~1.5 Hz is achieved at or near the upper limits of the payload range.
- The horizontal frequency will increase at the lower payload weights.
- Vertical frequency is tunable to 0.5 Hz throughout the payload range.
|
