CS-2500 System

For increased productivity, exceptional accuracy, and dependable first-run results, the CS-2500 System from Siemens Healthineers uses cleverly designed technologies, such as assay-based preanalytical sample-quality checks using PSI technology, automated mixing studies, automated platelets aggregation,¹ and clot waveform analysis.²

The CS-2500 System, equipped with advanced PSI technologies, elevates hemostasis testing and gives laboratories the confidence they need to succeed.

Features and benefits

Improve sample management, increase efficiency, and streamline lab workflow

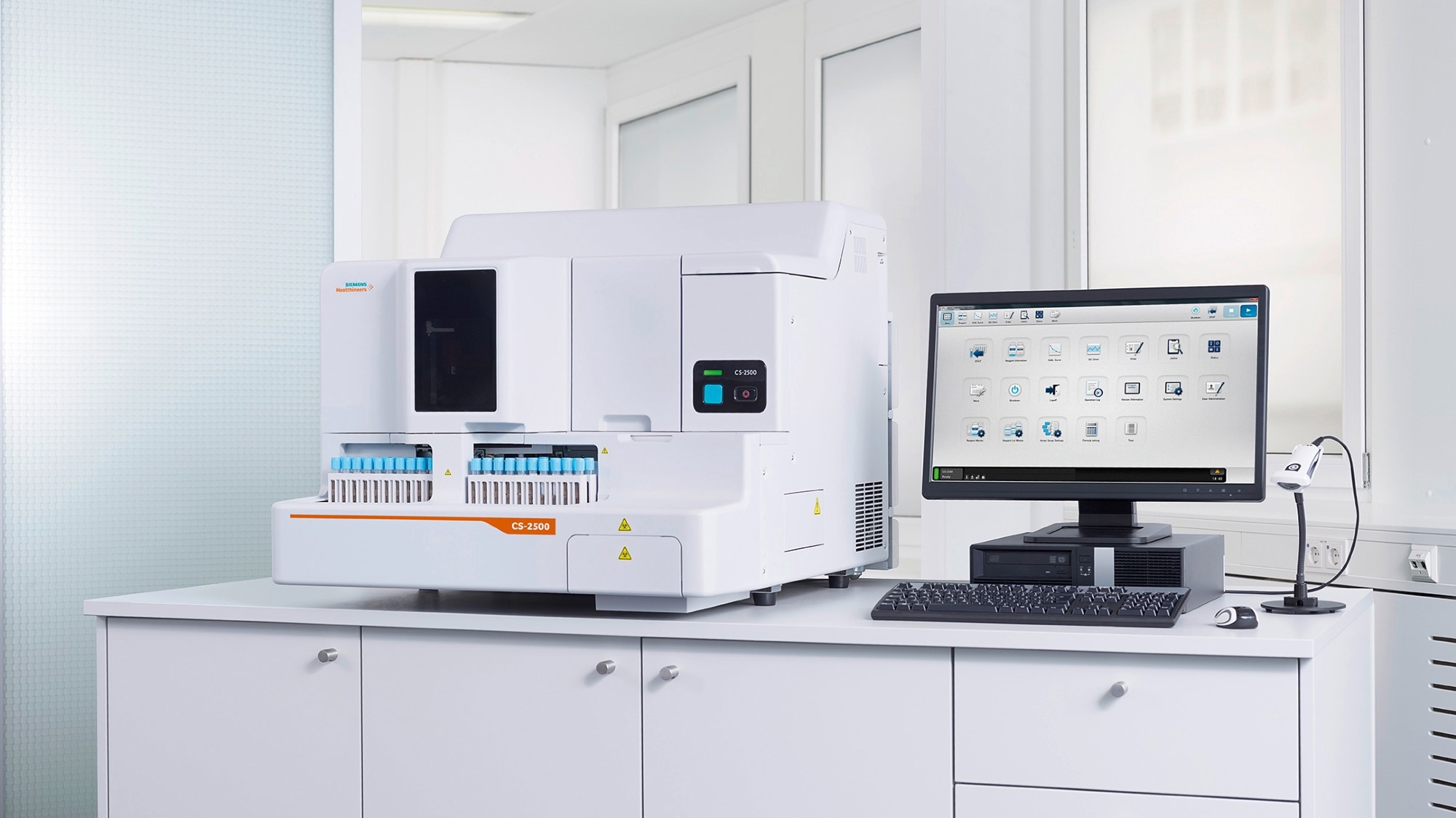

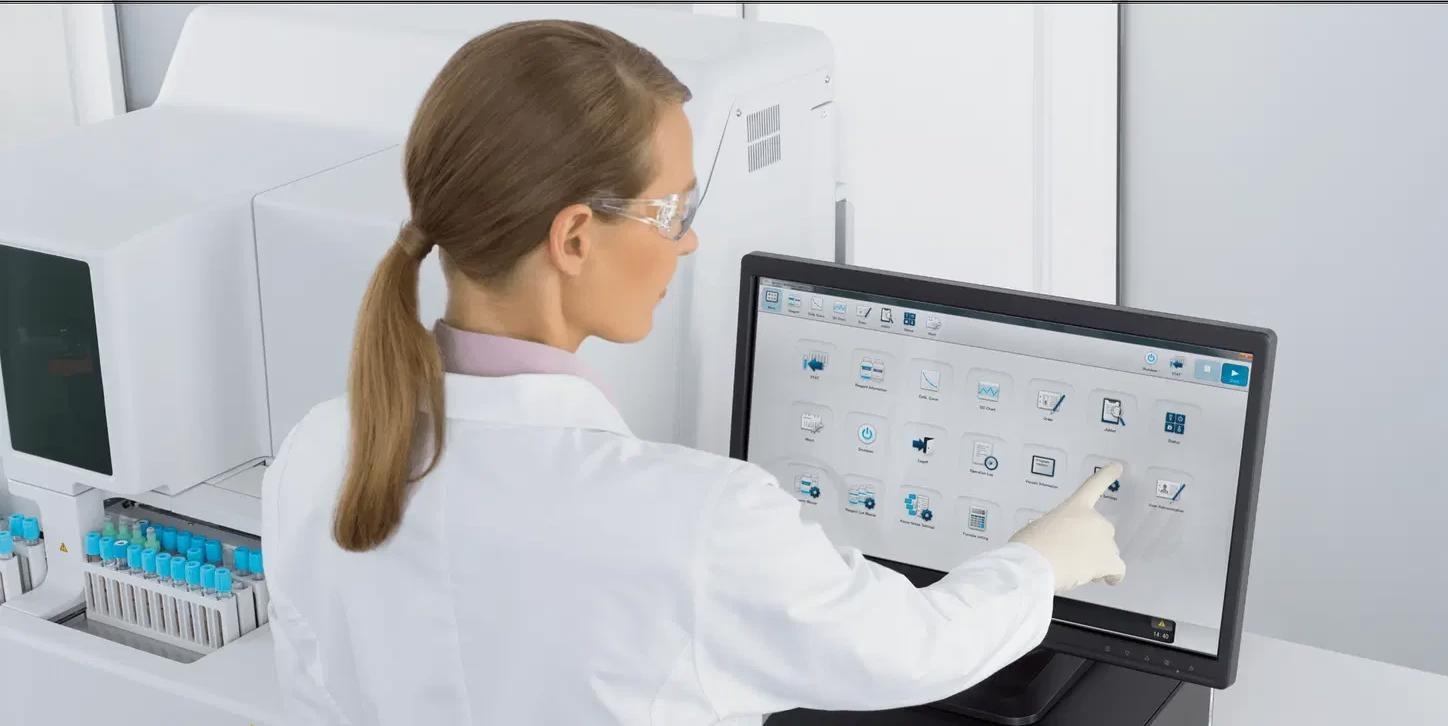

The CS-2500 System from Siemens Healthineers is a mid-volume, completely automated coagulation analyzer. It includes:

Image Credit: Siemens Healthineers

• Sample integrity
  • PSI technology assists laboratories in managing unsuitable samples before analysis and providing consistent findings on the first run

Image Credit: Siemens Healthineers

• Cost-effective consolidation
  • Instrument and staff consolidations can be done affordably using automated platelet aggregation,¹ automated clot waveform analysis,² and efficient reagent management

Image Credit: Siemens Healthineers

• Efficient operation
  • Lab procedures were expedited by sophisticated software, continuous loading, and simple maintenance support

Image Credit: Siemens Healthineers

• Seamless integration
  • Utilization across multisite laboratories is optimized by the seamless integration of instruments using shared consumables and similar assay reference ranges

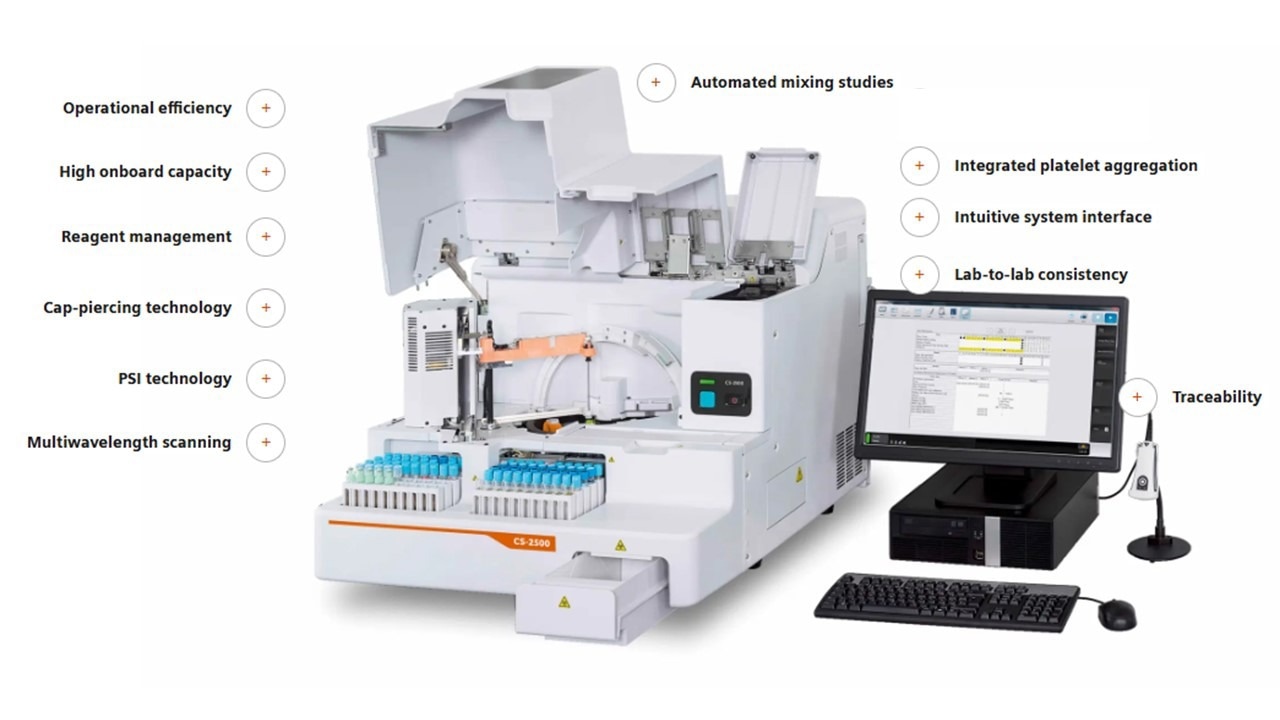

Take a tour of the system features

Image Credit: Siemens Healthineers

The CS-2500 System delivers sophisticated features and benefits for a simplified workflow and high-quality test results on the first run to mid-volume and multi-site laboratories.

Operational efficiency

A wide selection of assays, various testing techniques, high-tech software, and reduced maintenance will all help to increase operational effectiveness.

Image Credit: Siemens Healthineers

• Simultaneous processing of standard and micro-mode samples
• Automated QC checks are performed at user-defined intervals, and daily maintenance requires less than five minutes
• Medium test throughput using four measurement principles
• Broad test menu covering a wide range of hemostasis parameters
• Ready-to-use cleaning solution for simplified daily maintenance in just five minutes
• Multidilution analysis (MDA), automated repeat, redilution, and reflex testing

High onboard capacity

Image Credit: Siemens Healthineers

Extended walkaway duration and strong performance are supported by considerable onboard capacity.

• Onboard reagent capacity of up to 3000 tests³, 40 reagents, and five additional buffer positions
• Approximately 180 simultaneous PT/APTT tests per hour⁴
• Multiple lots of the same reagents onboard and flexible vial-type management.
• Continuous access to load up to 500 reaction tubes
• A high-capacity system extends walkaway time and allows professionals to concentrate on value-added activities

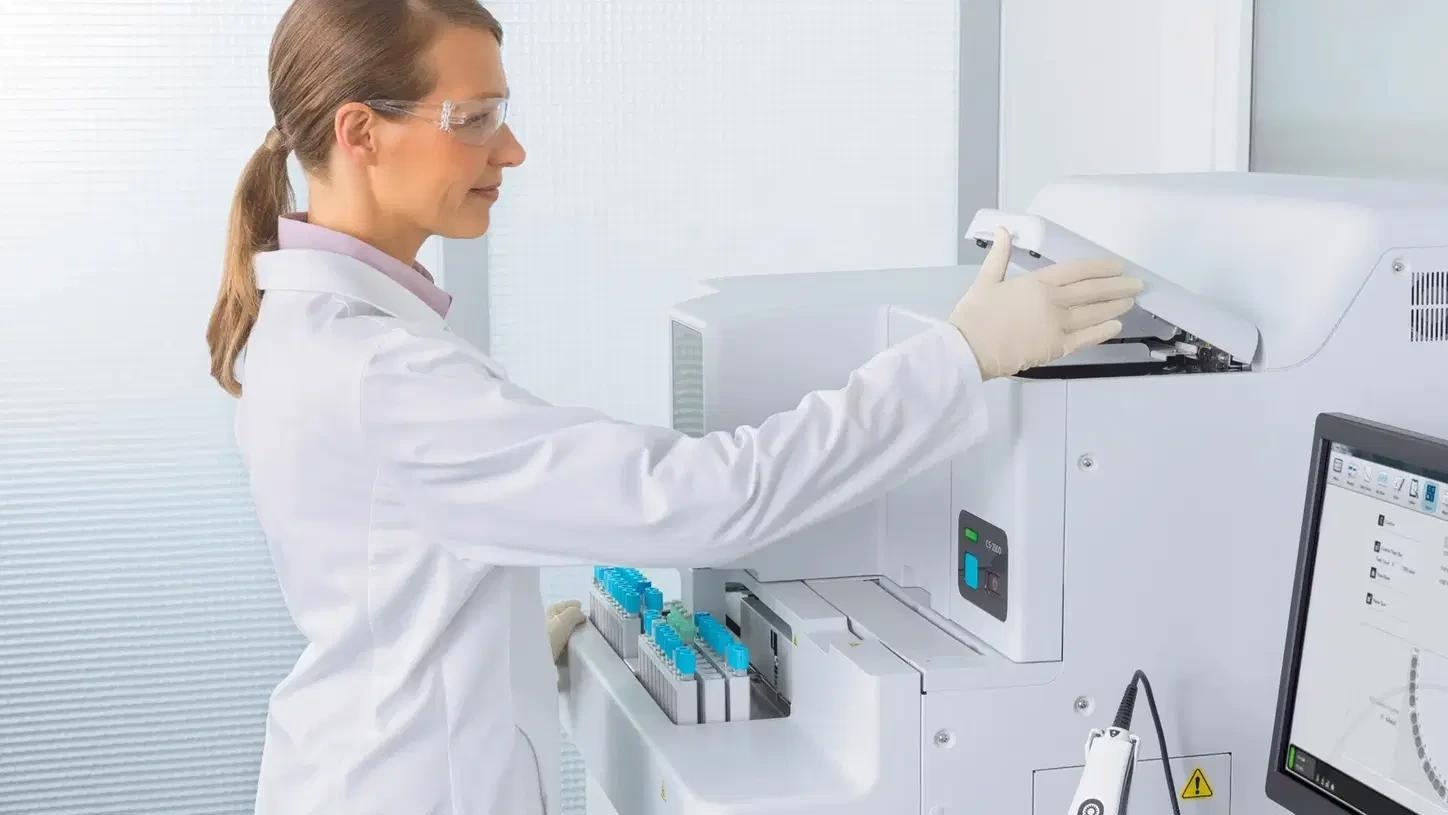

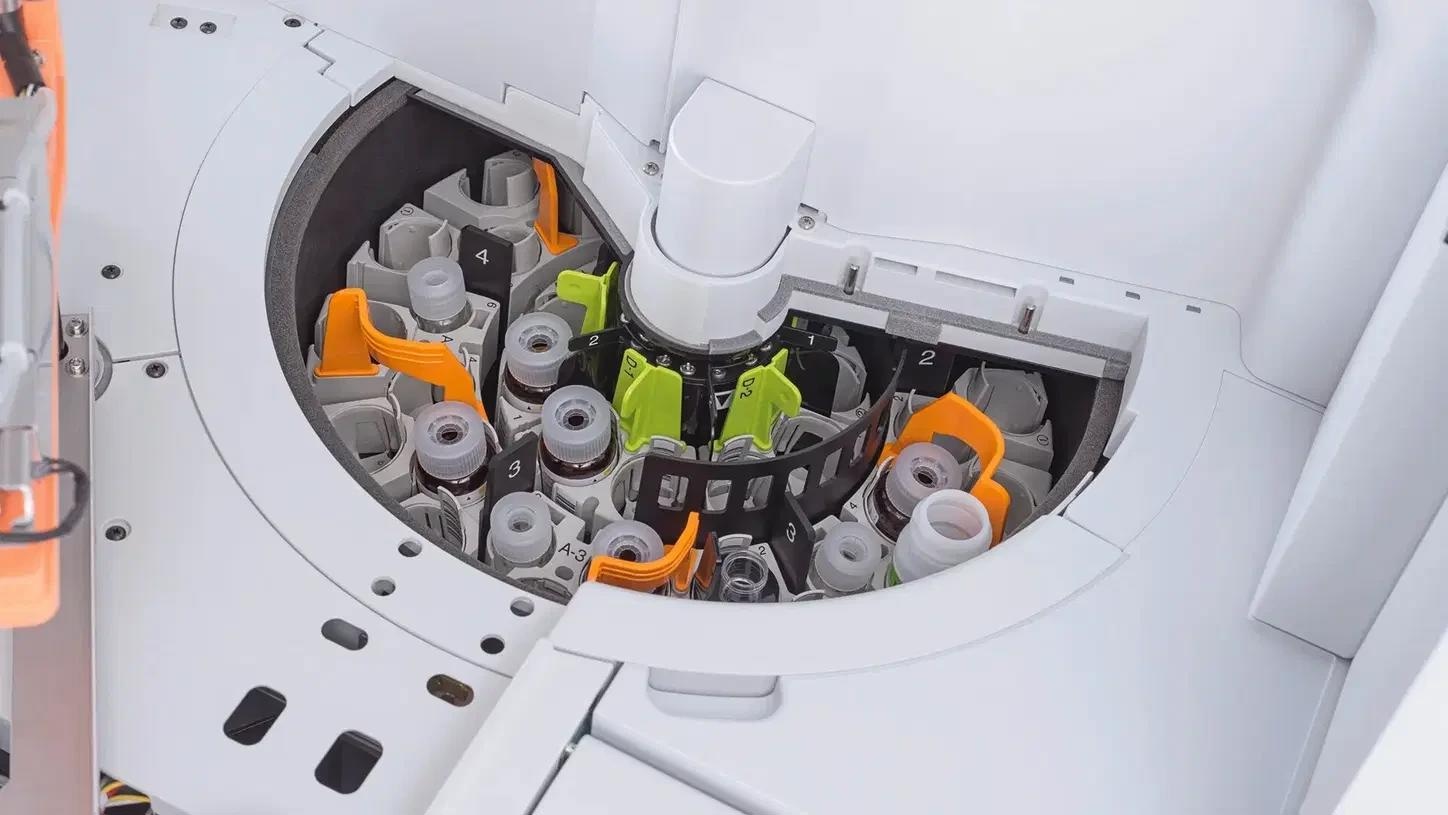

Reagent management

Image Credit: Siemens Healthineers

Lab procedures are streamlined by advanced reagent management, continuous loading, and prolonged onboard stability.

• Extended onboard reagent stability promotes cost-effective reagent usage
• The ability to keep reagents aboard is made possible by anti-evaporation caps and a refrigerated reagent chamber to around 10 °C.
• To optimize tests per vial, tilted vials and SLD micro cups lower reagent dead volume
• System automatically recognizes reagent fill volume
• Convenient reagent loading is made possible by an accessible reagent table without interfering with sample measurement
• Constant loading of supplies and samples speeds up the workflow

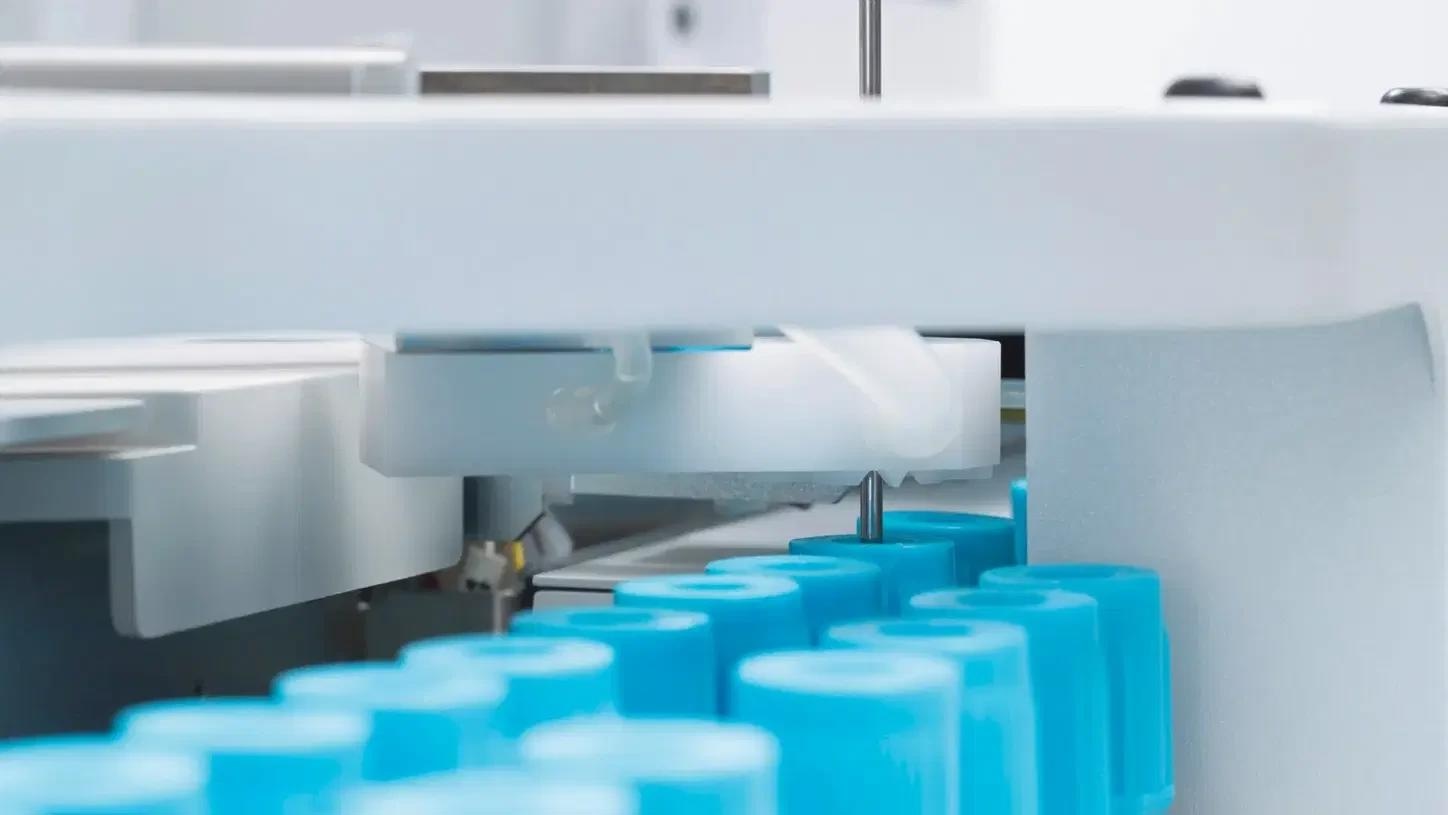

Cap-piercing technology

Image Credit: Siemens Healthineers

Cap-piercing technology, which is adaptable and third-generation, allows for consistent throughput for capped and uncapped samples.

• Third-generation cap-piercing technology offers reliable throughput that is constant
• The use of both capped and uncapped sample tubes and cups is permitted by cap-piercing technology
• Secure aliquot technology allows for numerous tests on a single sample without the risk of cap-piercing debris getting into the measurement system
• Customizable processing reduces manual procedures and lengthens walkaway time for both capped and uncapped samples

PSI technology

Image Credit: Siemens Healthineers

Using PSI technology, pre-analytical quality checks guarantee sample integrity.

• On the first run, reliable and precise findings are produced by assay-based, pre-analytical sample-quality checks utilizing PSI technology for HIL interference, sample-volume checks for up to five distinct primary tube types, and clog detection
• To reduce retests and reflex testing, simultaneous multiwavelength scanning detects and handles unsuitable samples
• For a range of test profiles, high-capacity performance is made possible by 10 adaptable reaction detectors

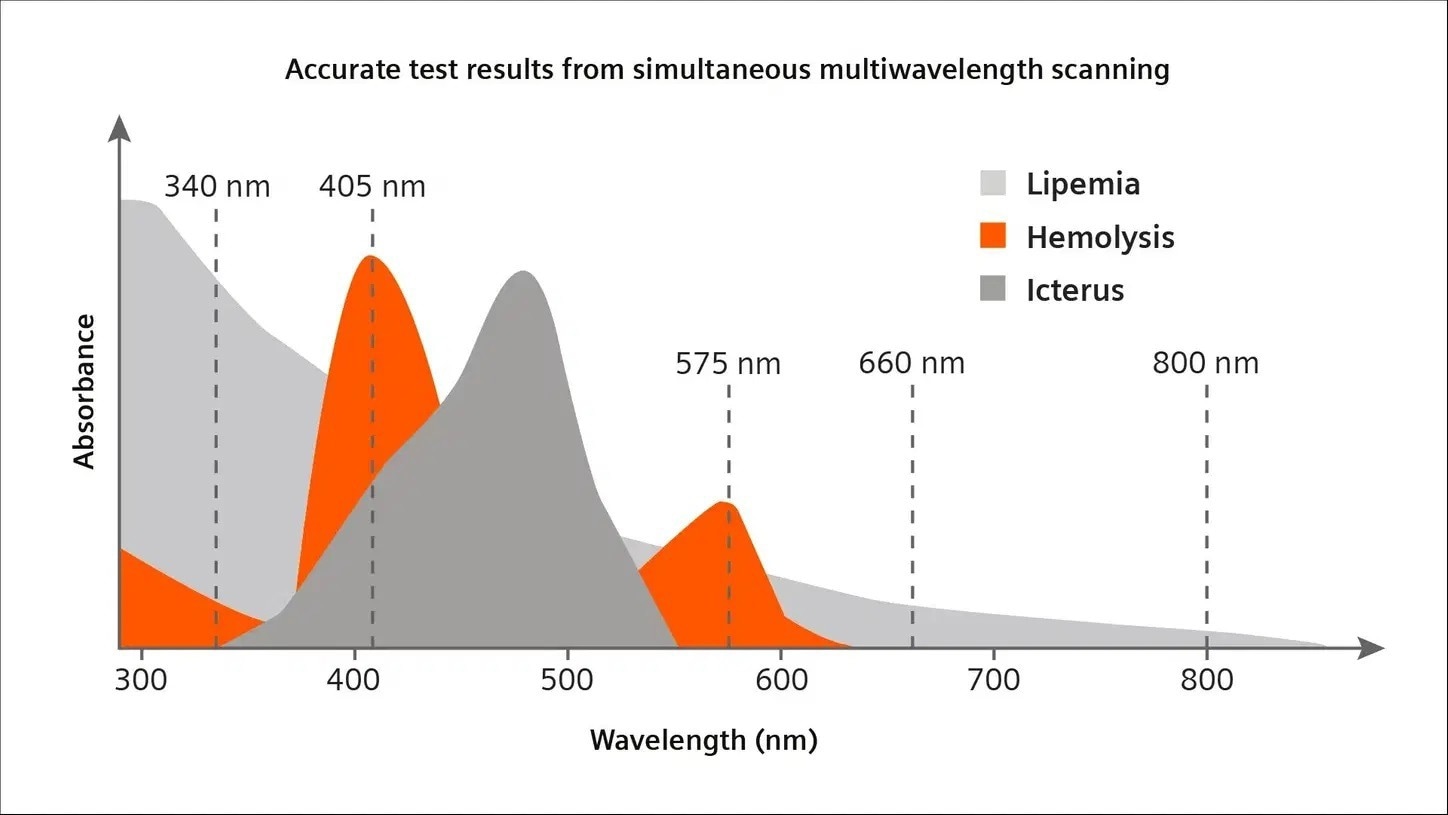

Multiwavelength scanning

Image Credit: Siemens Healthineers

A simultaneous multiwavelength scan allows for the best wavelength choice.

• All detector channels are concurrently examined for clotting reactions during analysis at 340, 405, 575, 660, and 800 nm
• By automatically choosing the best wavelengths, the system lessens the impact of interfering substances on absorbance spectra
• High-throughput capacity for a range of test profiles is made possible by 10 reaction detectors

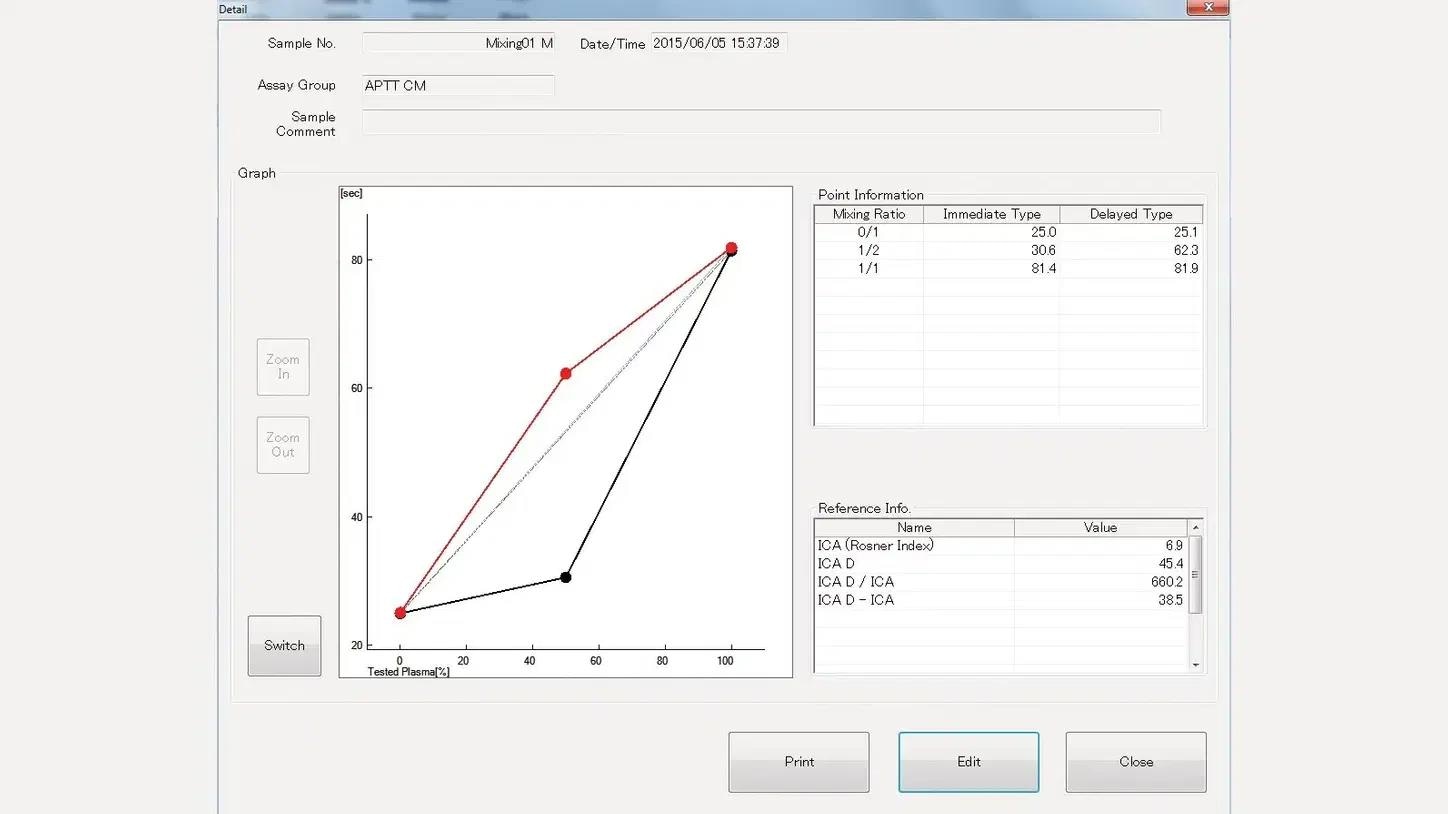

Automated mixing studies

Image Credit: Siemens Healthineers

Automated mixing studies offer a rapid, productive workflow.

• Automated mixing studies employ multi-dilution analysis (MDA)
• With the help of MDA, clinicians can make conclusions about circulating inhibitor patterns and factor deficits
• Automated dilution of samples with graphical output allows easy analysis
• Processes are made simpler with robust, user-friendly graphical analysis tools

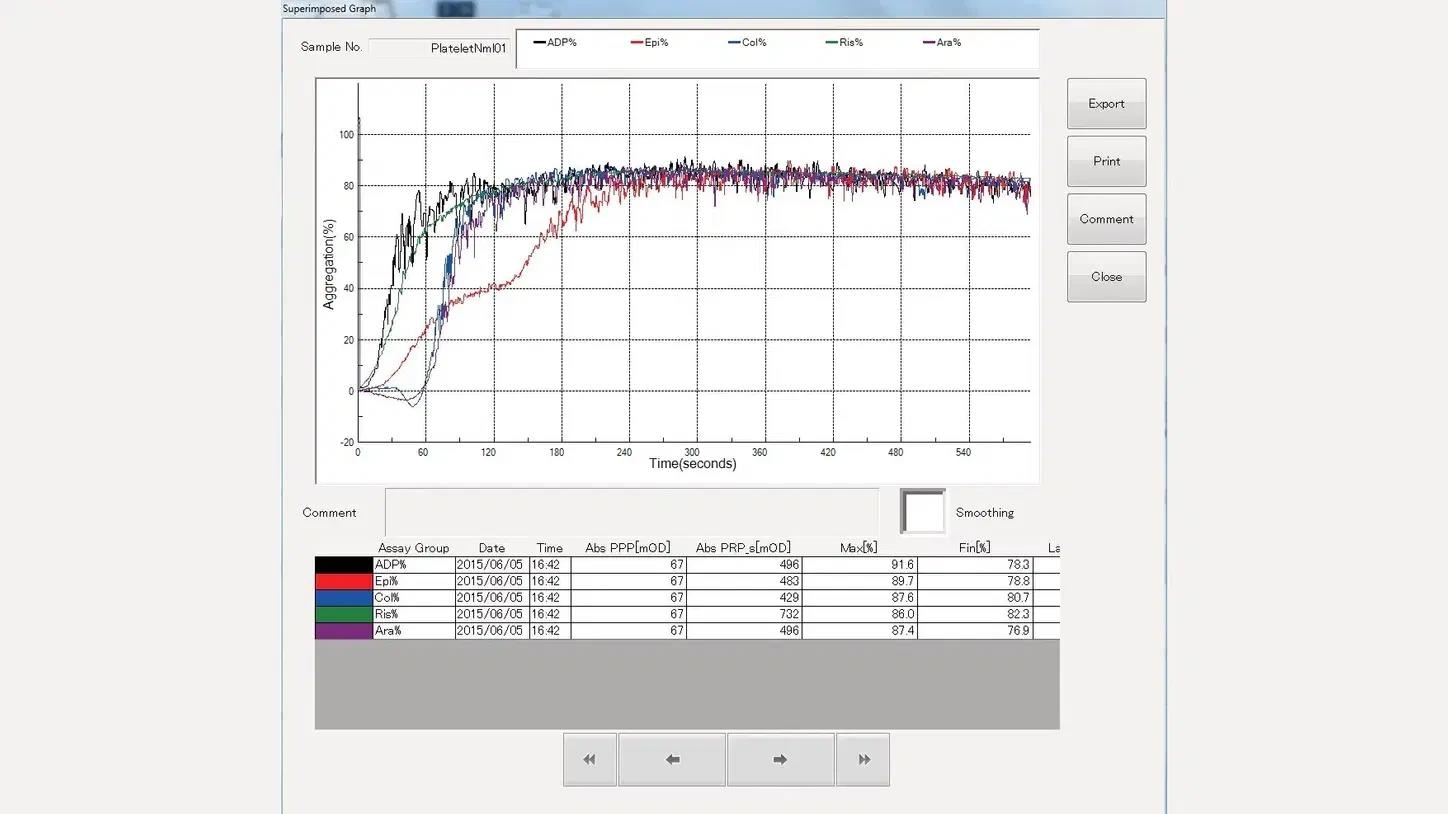

Integrated platelet aggregation

Image Credit: Siemens Healthineers

The number of steps is decreased by integrated platelet aggregation.

• Integrated platelet aggregation¹ enables the identification of inherited, acquired, or drug-induced platelet disorders at a low cost
• A streamlined process that uses fewer instruments and employees with less specialized skills saves a lot of time and resources
• Operations are simplified with powerful, easy-to-use graphical analysis tools

Intuitive system interface

Image Credit: Siemens Healthineers

An intuitive system interface makes lab operations more efficient and productive.

• A 24-inch touchscreen and intuitive software offer a user-friendly interface that is easily customized
• The interface provides access to onboard assistance, customizable maintenance, quality control processes, and real-time reagent and consumables monitoring
• Minimize training and deliver an intuitive user experience from system to system with the family of CS systems’ consistent system interface and functionality

Lab-to-lab consistency

Reliable multisite patient monitoring is provided by true lab-to-lab uniformity.

• Results correlate with CN-30006, CN-6000, CS-5100, and CA-600 series systems
• Instruments and standard PSI technology are seamlessly integrated to maximize utilization in multisite labs
• Standard software, reagents, controls, and calibrators increase convenience, lower costs, and decrease waste for more effective labor utilization.
• The Atellica Data Manager facilitates uniform test procedure and result management inside the lab and across lab networks

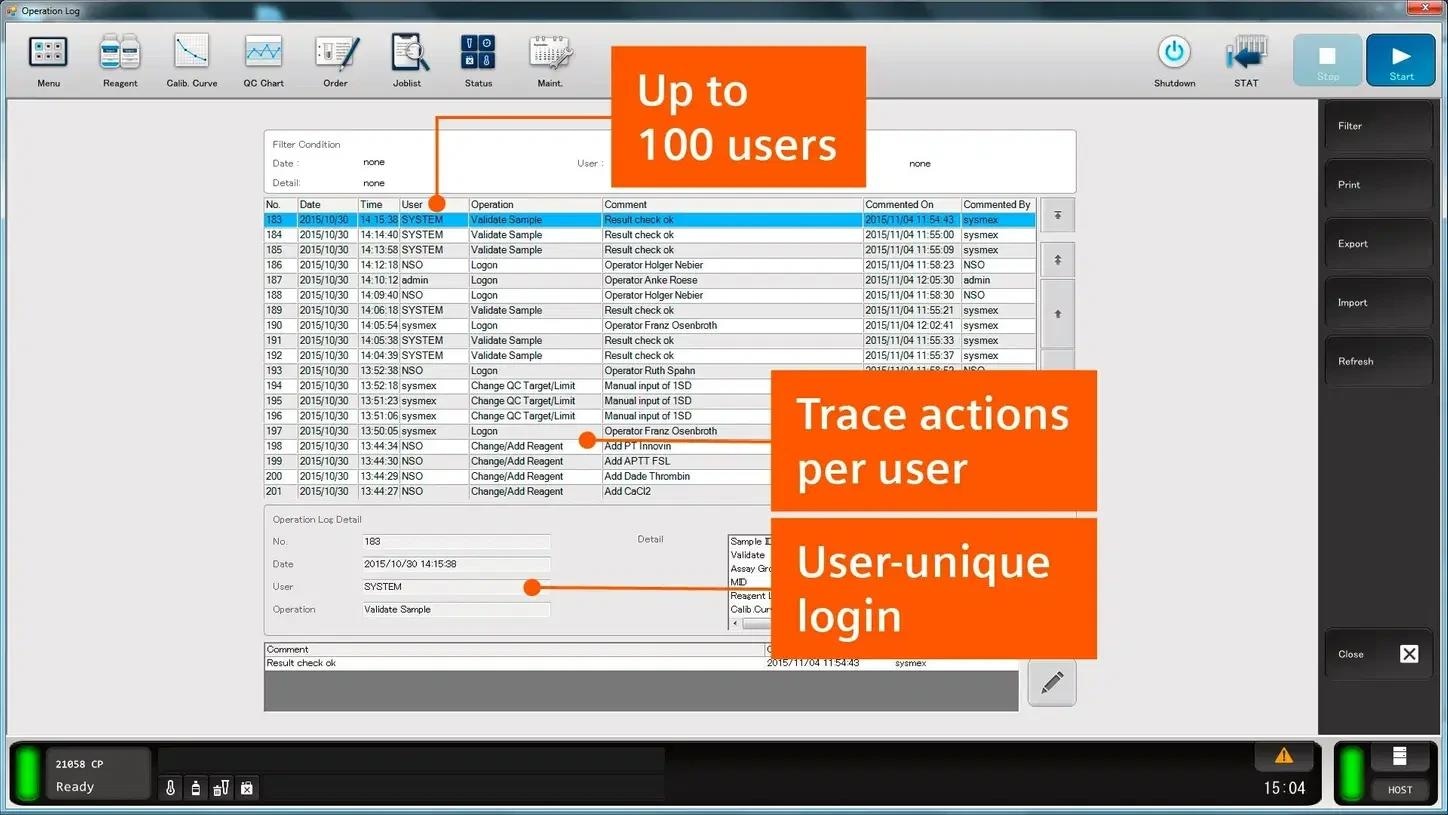

Traceability

Image Credit: Siemens Healthineers

More clinical insight is provided by fully traceable results and simple audit trails.

• Comprehensive traceability of sample results through easy-to-use audit trials
• Audit trials for up to 60 results per sample for 10,000 samples
• Consists of the following: operator identification, time and date stamps, reagent lot information, reagent table temperatures, test protocol number, dilution ratio, calibration curve information, measurement result information, operation, and error logs, maintenance and QC history, automatic backup, and data storage

Assays

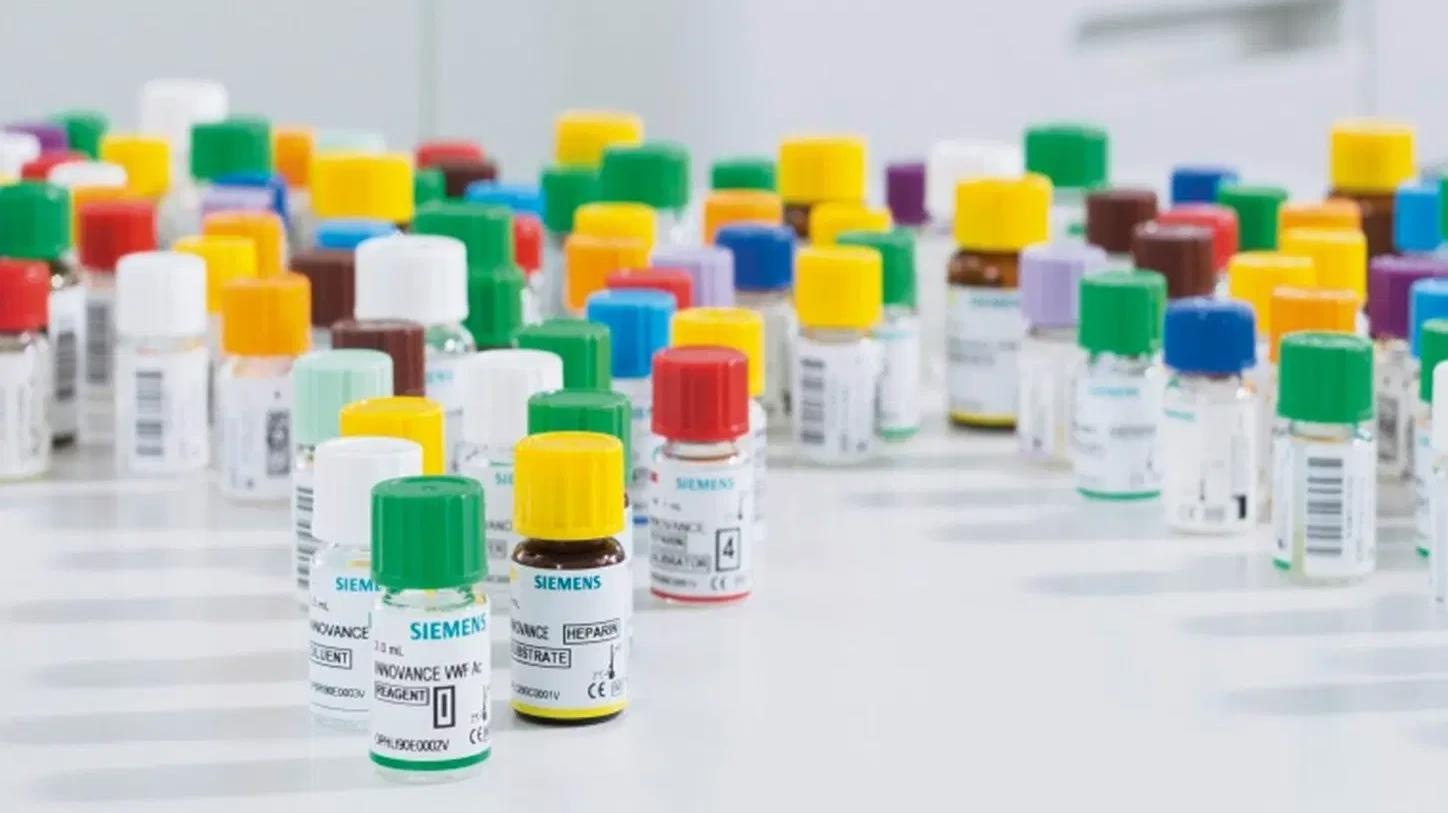

The CS-2500 System delivers a wide range of standard and specialty hemostasis assays (including multiple INNOVANCE assays), all on a single instrument, enabling laboratories to handle more samples while running more tests per sample.

Our hemostasis assay portfolio ranges from standard PT and APTT testing to a range of specialty tests. Image Credit: Siemens Healthineers

Reagent test menu

PT Dade® Innovin®, Thromborel® S

APTT Dade Actin®, Dade Actin FS, Dade Actin FSL, Pathromtin® SL

Fibrinogen Dade Thrombin

Thrombin time Test Thrombin, Thromboclotin®

Batroxobin time Batroxobin

Factor deficiency Factor II, V, VII, VIII, IX, X, XI, XII

Lupus anticoagulant LA1 screening, LA2 confirmation

Protein C pathway Protein C, ProC® Ac R,⁶ ProC Global,6 F V Leiden (using ProC Global 6 ), INNOVANCE® Free PS Ag, Protein S Ac

Anticoagulant therapy

management

INNOVANCE Heparin (LMWH, UFH), INNOVANCE Anti-Xa (LMWH, UFH, apixaban, rivaroxaban,⁶ edoxaban⁶ ),

INNOVANCE DTI (dabigatran),⁶ other direct oral anticoagulant testing upon request^6,7

Antithrombin III Berichrom® Antithrombin III (A), INNOVANCE Antithrombin

D-dimer INNOVANCE D-Dimer

Von Willebrand factor vWF Ag, INNOVANCE VWF Ac, BC von Willebrand⁶

Chromogenic Factor VIII Chromogenic Assay, Berichrom F XIII,⁶ Berichrom C1-Inhibitor, 6 Berichrom α2-Antiplasmin,

Berichrom Plasminogen, Berichrom Protein C, Factor IX Chromogenic,^6,7

Platelet aggregation ADP,^6,7 Epinephrine,^6,7 Ristocetin,^6,7 Collagen,^6,7 Arachidonic acid^6,7

Technical specifications

Source: Siemens Healthineers

Optimized digital solutions

Siemens Healthineers provides a comprehensive range of digital solutions that aid in optimizing clinical operations, whether hemostasis is completely integrated or stand-alone.

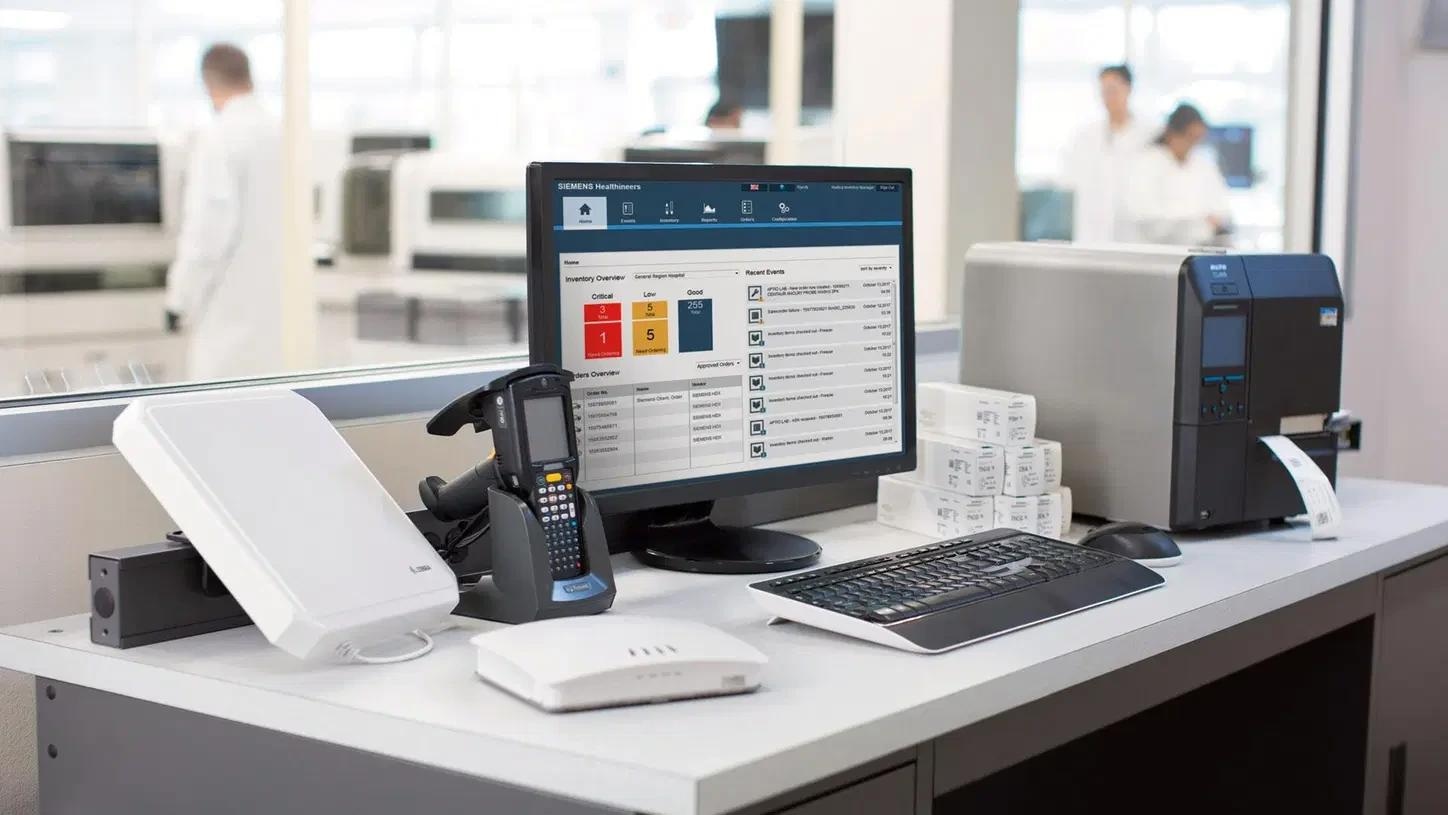

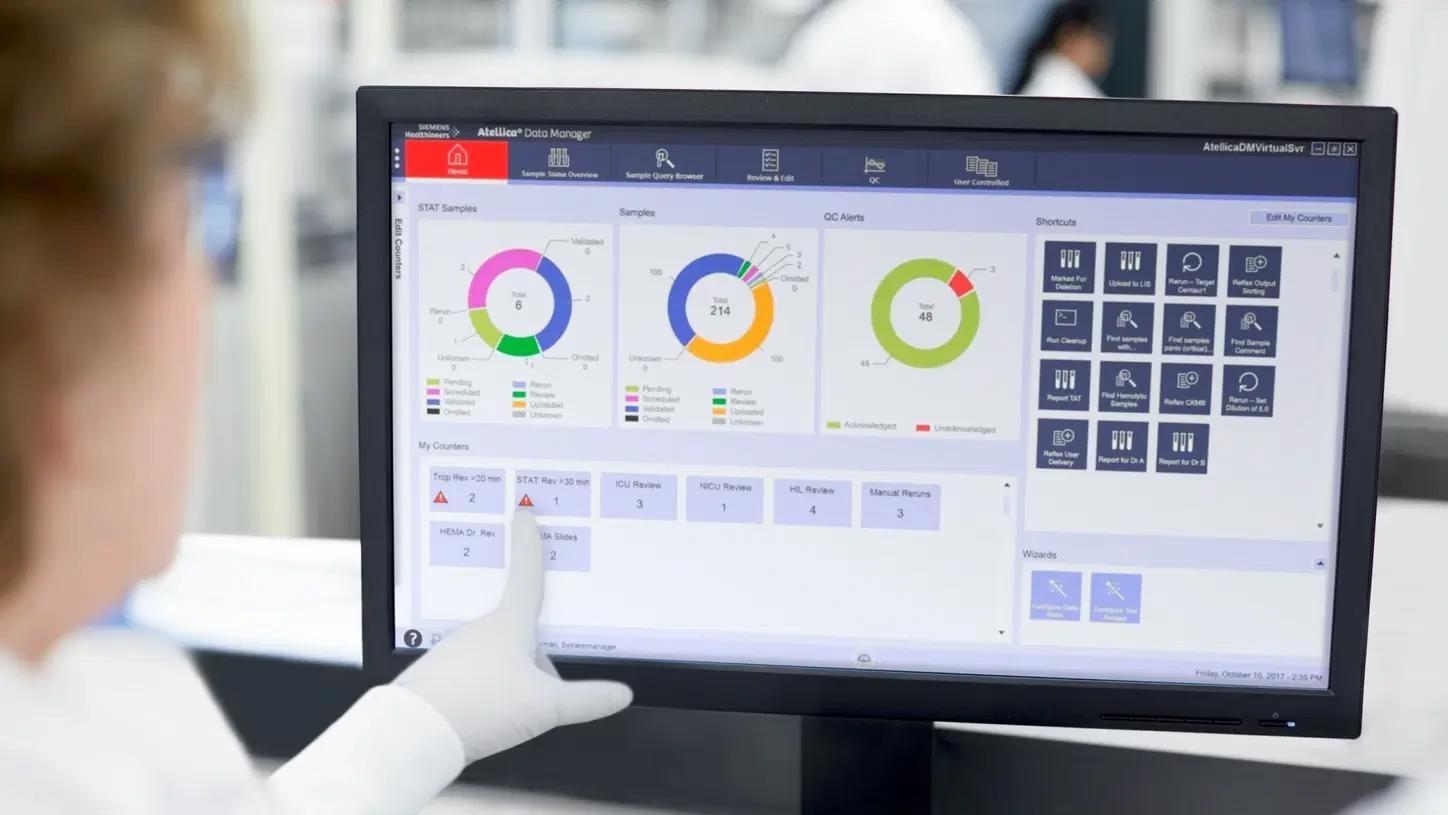

Atellica Data Manager

Image Credit: Siemens Healthineers

Allows for the standardization of testing procedures and result management across lab networks.

Atellica Process Manager

Image Credit: Siemens Healthineers

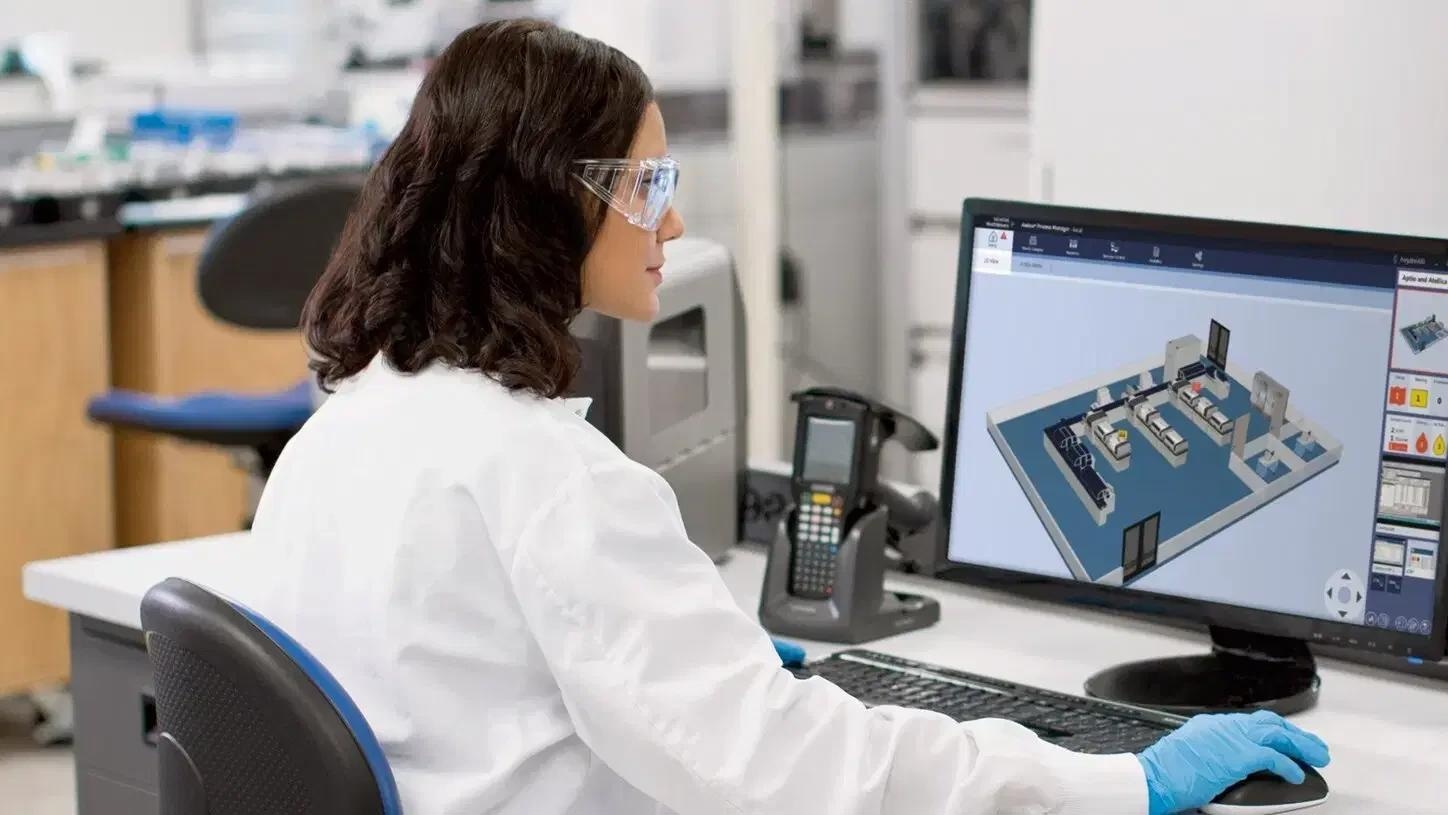

It helps laboratories use integrated analytics to standardize and improve procedures.

Atellica Inventory Manager

Image Credit: Siemens Healthineers

The Atellica Inventory Manager reduces costs, saves time, and enhances lab quality by automating control of reagents and consumables across numerous sites.

Reference:

1 HYPHEN BioMed application. The products/features are not commercially available in all countries. Due to regulatory reasons, their future availability cannot be guaranteed. Please contact your local Siemens Healthineers organization for further details. In the U.S., platelet aggregation testing is for reasearch use only, not for use in diagnostic procedures.

2 Research use only. Not for use in diagnostic procedures.

3 Test capacities: PT—3000; PT/APTT—2880; PT/APTT/Fbg—2840.

4 Throughput values were determined by the time to first result using the Siemens Healthineers study protocol with PT (Thromborel S reagent) and APTT (Pathromtin SL reagent) test applications.

5 The products/features are not commercially available in all countries. Due to regulatory reasons, their future availability cannot be guaranteed.

6 The products/features/applications mentioned here are not commercially available in all countries and are subject to local regulations. Their future availability cannot be guaranteed. Not available for sale in the U.S.

7 HYPHEN BioMed reagent.

8 Throughput values were determined by the time to first result using the Siemens Healthineers study protocol with PT (Thromborel S reagent), APTT (Pathromtin SL reagent), DD (INNOVANCE D-Dimer reagent), and AT (INNOVANCE Antithrombin reagent) test applications.
